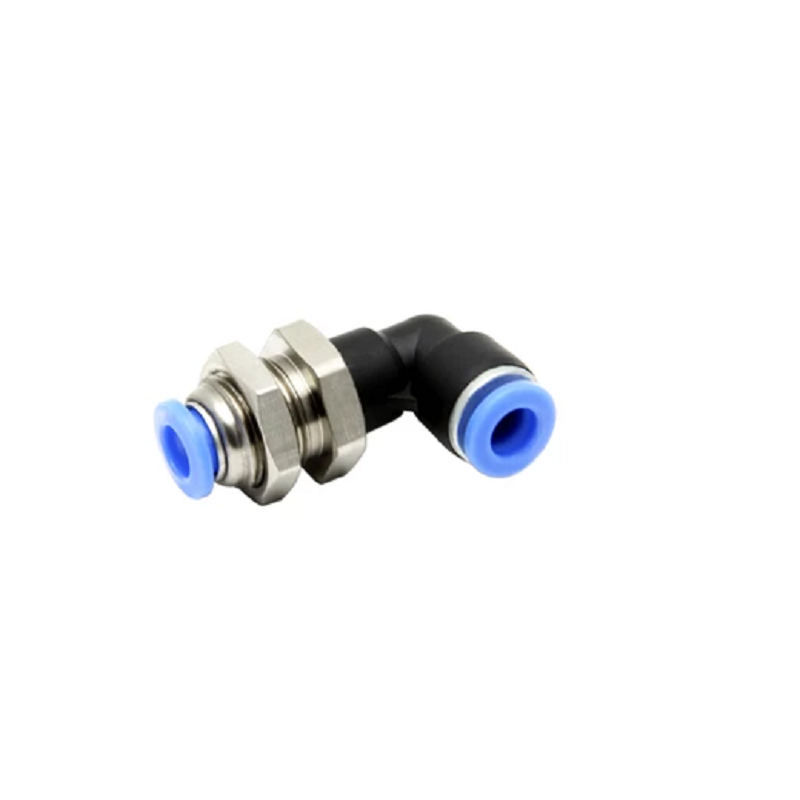

PNEUMATIC BULKHEAD UNION ELBOW

Brand OEM (Korea)

Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-

usable thread seal and parallel threads have a rubber washer. Main body manufacyured from nickle plated brass, acetal resin, PBT

with a stainless steel retaining ring, nitrele tube seal and acetal resin tube release collar.

Pressure range : -0.9bar min to +10bar max. Temp range : -20*C min to +70*C max. Tube suitability : Nylon, Polyurethane.
