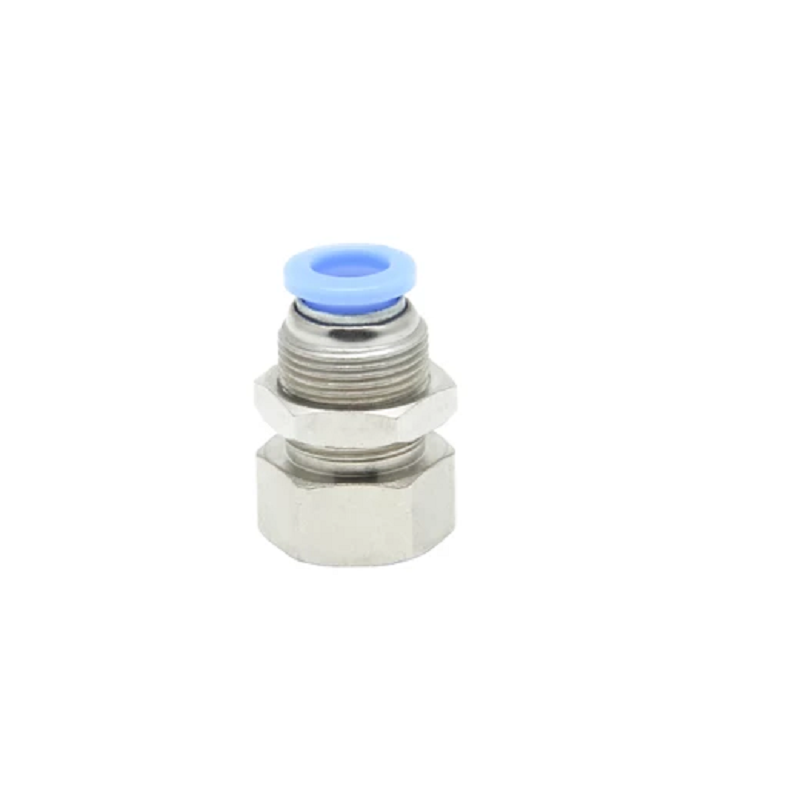

PNEUMATIC BULKHEAD FEMALE CONNECTOR
MODEL : PMF1204SIZE : 12MM X 1/2"BSPT
Description
Brand OEM (Korea)
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-
usable thread seal and parallel threads have a rubber washer. Main body manufacyured from nickle plated brass, acetal resin, PBT
with a stainless steel retaining ring, nitrele tube seal and acetal resin tube release collar.
Pressure range : -0.9bar min to +10bar max. Temp range : -20*C min to +70*C max. Tube suitability : Nylon, Polyurethane.
