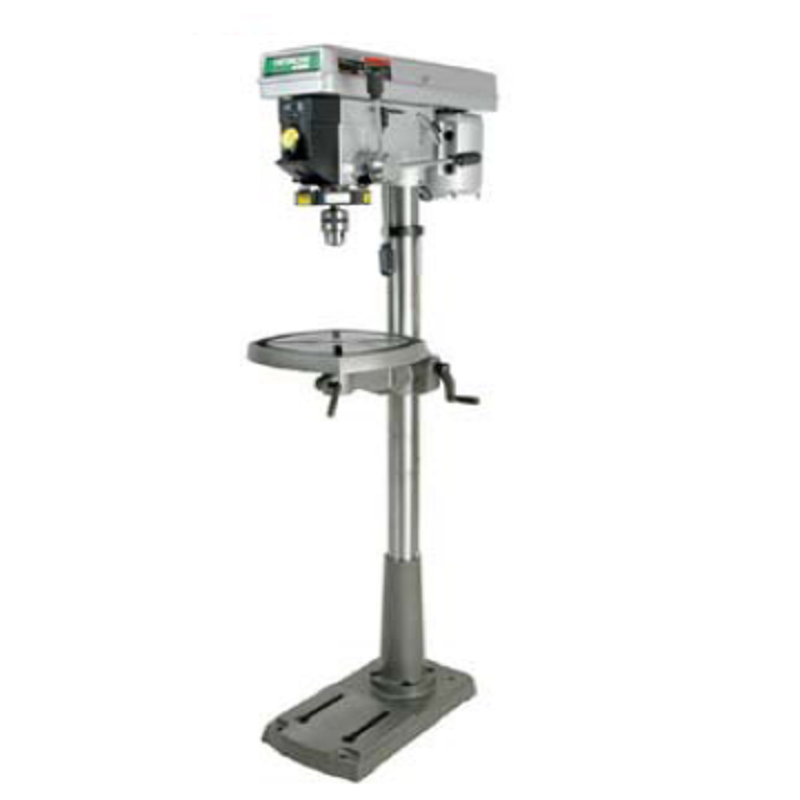

HITACHI BENCH DRILL PRESS
MODEL : B 16RM
Description
* LASER GUIDE : X-Y AXIAL PROJECTING LINES FOR PRE-ALIGNMENT OF DRILLING LOCATION
* DEPTH ADJUSTMENT GAUGE FOR ACCURATE DRILLING DEPTH
* DURABLE CAST IRON TABLE : SURFACE TILTS 45* RIGHT OR LEFT
* 12-STAGE SPEED : 210-2580/min
* QUICK-BELT TENSION RELEASE KNOB FOR FAST SPEED SETTING
*BUILT-IN LIGHT
MODEL : B16RM
CHUCK CAPACITY : 16MM (5/8")
POWER INPUT : 750w
LASER : CLASS II, MAXIMUM OUTPUT<1mW
NO LOAD SPEED : 50hz 250/340/510/600/650/990/1,550/1,620/
1,630/2,620/3,100/min
SPINDLE : JT3
SWING : 380mm (15")
SPINDLE TRAVEL : 85mm (3-1/8")
TABLE SIZE : 336mm X 336mm X (13-15/64 X 13-15/64")
BASE : 279mm X 518mm (11 X 63-1/4")
OVERALL HEIGHT : 1,618mm (63-1/4")
WEIGHT : 75kg (165lbs)
